उत्पाद का विवरण
उत्पत्ति के प्लेस: वियतनाम
ब्रांड नाम: Ziitek
प्रमाणन: RoHS
मॉडल संख्या: Z-फोम800-10SC
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1000 पीसी
मूल्य: 0.1-10 USD/PCS
पैकेजिंग विवरण: 24*13*12 सेमी डिब्बों
प्रसव के समय: 3-6 कार्य दिवस
भुगतान शर्तें: टी/टी
आपूर्ति की क्षमता: 1000000 पीसी/महीना
उत्पाद का नाम: |
इलेक्ट्रिक वाहन के लिए Z-Foam800-10SC उच्च तापमान प्रतिरोध शॉक प्रतिरोध सिलिकॉन फोमिंग सामग्री |
रंग: |
स्लेटी |
घनत्व(जी/सेमी³）: |
0.37 |
संपीड़न सेट @100℃(%): |
＜0.37 |
संरचना एवं घटक: |
सिलिकॉन रबर |
तन्य शक्ति (एमपीए): |
≥0.3 |
ब्रेकडाउन वोल्टेज (केवी / मिमी): |
≥2.5 |
आवेदन: |
विद्युतीय वाहन |
कीवर्ड: |
सिलिकॉन फोमिंग |
उत्पाद का नाम: |
इलेक्ट्रिक वाहन के लिए Z-Foam800-10SC उच्च तापमान प्रतिरोध शॉक प्रतिरोध सिलिकॉन फोमिंग सामग्री |
रंग: |
स्लेटी |
घनत्व(जी/सेमी³）: |
0.37 |
संपीड़न सेट @100℃(%): |
＜0.37 |
संरचना एवं घटक: |
सिलिकॉन रबर |
तन्य शक्ति (एमपीए): |
≥0.3 |
ब्रेकडाउन वोल्टेज (केवी / मिमी): |
≥2.5 |
आवेदन: |
विद्युतीय वाहन |
कीवर्ड: |
सिलिकॉन फोमिंग |

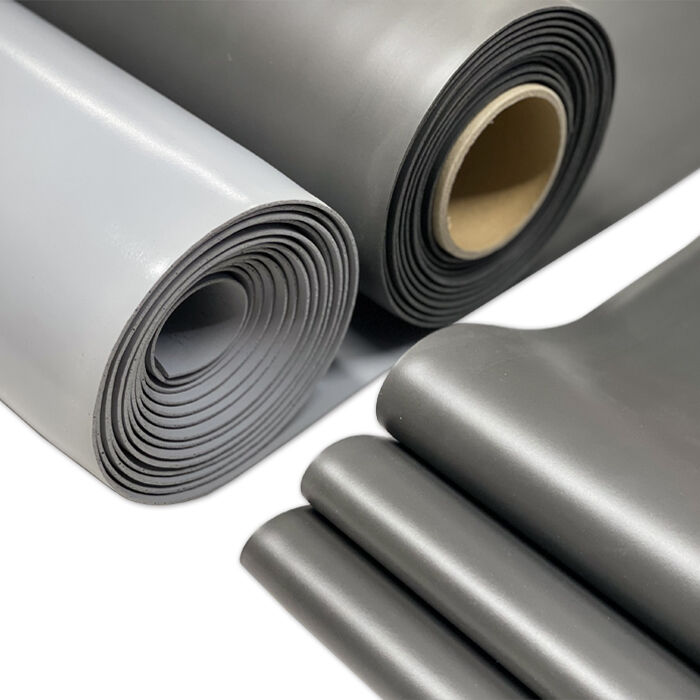

Z-Foam800-10SC High Temperature Resistance Shock Resistance Silicone Foaming Material For Electric Vehicle
Z-Foam®800-10SC series foamed silicone is a foam material formed by the foaming of poly siloxane, retaining the excellent properties of silicone polymers, such as resistance to high and low temperatures, ultraviolet light, ozone, weather ability, insulation, and environmental friendliness, while also possessing the characteristics of foam materials, including low density, excellent sound absorption, and shock resistance. Its outstanding compressive deformation resistance, creep resistance, flame retardancy, and mechanical fatigue resistance make it an ideal material for various high-performance applications such as sealing, vibration damping, cushioning, sound insulation.
Features
>Resistant to mechanical fatigue
>Resistant to ozone and ultraviolet rays
>High oxygen index, low smoke,low toxicity
>Excellent performance under extreme temperatures
>Excellent resistance to compression set and creep
Application
>Communication Equipment
>Smart Devices
>Cables and Optical Fibers
>Airplanes, High-Speed Trains,Automobiles
>Telecommunication and Electrical Cabinets
| Typical Properties of Z-Foam®800-10SC Series | ||
| Properties | Value | Test method |
| Color | Gray | Visual |
| Structure & Component | Silicone rubber | ****** |
| Density (g/cm3) | 0.37 | ASTM D1056 |
| Compression Set @100℃(%)) | ＜5.0 | ASTM D1056 |
| Tensile Strength (MPa) | ≥0.3 | ASTM D412 |
| Elongation At Break (%) | ≥90 | ASTM D570 |
| Water Absorption (%) | ≤5.0 | ASTM D412 |
| Breakdown Voltage (kV/mm) | ≥2.5 | ASTM D149 |
| Volume Resistivity (Ω·cm) | ≥1.0 x 1014 | ASTM D257 |
| Temperature Range (℃)) | -55~200 | ****** |
| Flame Rating | V-0 | UL94 (E331100) |
Standard Sheet Size:23" x 60"(584mm x 1524mm)
Z-Foam® Series can be die-cut into different shapes provided.
For More different thickness,please contact us.
Company profile
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in Vietnam.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
