उत्पाद का विवरण
उत्पत्ति के प्लेस: वियतनाम
ब्रांड नाम: Ziitek
प्रमाणन: RoHS
मॉडल संख्या: टीआईएफ100एल 2050-06
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1000PCS
मूल्य: 0.1-10 USD/PCS
पैकेजिंग विवरण: 24*13*12 सेमी डिब्बों
प्रसव के समय: 3-5 कार्य दिवस
भुगतान शर्तें: टी/टी
आपूर्ति की क्षमता: 100000pcs/दिन
स्थिति: |
ग्राफिक्स कार्ड कूलिंग मॉड्यूल के लिए सिलोक्सेन सिलिकॉन थर्मली कंडक्टिव गैप फिलर पैड की अल्ट्रा लो अ |
विशिष्ट गुरुत्व: |
2.9 ग्राम/सेमी³ |
कीवर्ड: |
थर्मल गैप फिलर पैड |
मोटाई सीमा: |
0.010इंच (0.25mmT)~0.200इंच (5.0mm) |
कठोरता: |
65/35 तट 00 |
रंग: |
सफ़ेद |
प्रकार: |
2.0w/mk |
लौ रेटिंग: |
यूएल 94 वी-0(ई331100) |
सामग्री: |
सिरेमिक से भरा सिलिकॉन इलास्टोमेर |
आवेदन: |
ग्राफ़िक्स कार्ड कूलिंग मॉड्यूल |
स्थिति: |
ग्राफिक्स कार्ड कूलिंग मॉड्यूल के लिए सिलोक्सेन सिलिकॉन थर्मली कंडक्टिव गैप फिलर पैड की अल्ट्रा लो अ |
विशिष्ट गुरुत्व: |
2.9 ग्राम/सेमी³ |
कीवर्ड: |
थर्मल गैप फिलर पैड |
मोटाई सीमा: |
0.010इंच (0.25mmT)~0.200इंच (5.0mm) |
कठोरता: |
65/35 तट 00 |
रंग: |
सफ़ेद |
प्रकार: |
2.0w/mk |
लौ रेटिंग: |
यूएल 94 वी-0(ई331100) |
सामग्री: |
सिरेमिक से भरा सिलिकॉन इलास्टोमेर |
आवेदन: |
ग्राफ़िक्स कार्ड कूलिंग मॉड्यूल |
Ultra Low Volatility Of Siloxane Silicone Thermally Conductive Gap Filler Pads For Graphics Card Cooling Module
Product descriptions

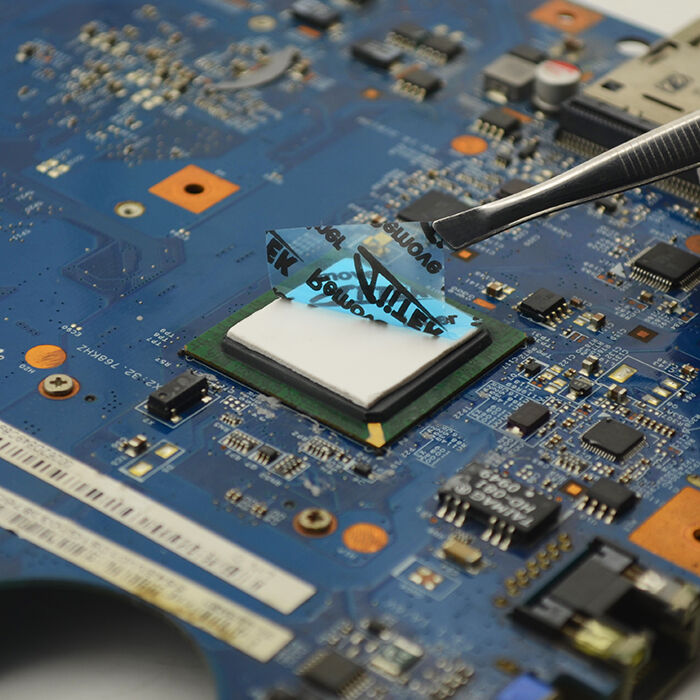

The TIF®100L 2050-06 eries is a thermal pad with ultra-lowsiliconoxygen volatilization, designed specifically for optical and high-precision applications. Its soft and elastic material can fill the uneven gaps between heating elements and heat sinks or metal bases, limprove thermal conductivity efficiency,and effectively extend the life of electronic components. The silicone structure filled with ceramics not only has good thermal conductivity, but also has extremely low volatility of low molecular weight siloxanes, which can significantly reduce the risk of internal contamination in optical devices.
Features
>Ultra low volatility of siloxane
>Good thermal conductivity
>Self adhesive without the need for extermal surface adhesive
>Highly compressible,easy to install and operate
>Good insulation performance
Applications
>Embedded Motherboard
>Industrial visual inspection equipment
>Graphics card cooling module
>Charging pile power module
>Central control screen
| Typical Properties of TIF®100L 2050-06 Series | |||
| Property | Value | Test method | |
| Color | White | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.9 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 50 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant @1MHz |
7.0 |
ASTM D150 | |
| Volume Resistivity(Ohm-meter) | ＞1.0X1012 | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 2.0W/m-K | ASTM D5470 | |
| 2.0W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness:0.010" (0.25 mm)～0.200" (5.00 mm),with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mmx406 mm)
The TIF® series is available in custom shapes andvarious forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company Profile
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
